LED products
Based on the experience of various shipowners this lighting option is more economical and can significantly save the company's budget, and our company can provide you with high quality and cost effective modernization as experienced specialists in this field
LED TUBES
Description | G13 T8 Led 9W 4000K 1080lm 240V 600mm | G13 T8 Led 18W 4000K 2160lm 240V 1200mm | G13 T8 Led 22W 4000K 2640lm 240V 1500mm | G13 T8 Led 16W 4000K 2400lm 240V 1200mm | G13 T8 Led 24W 4000K 3700lm 240V 1500mm |
Wattage | 9 W | 18 W | 22 W | 16 W | 24 W |
Lumens | 1080 lm | 2160 lm | 2640 lm | 2400 lm | 3700 lm |
Length | 600 mm | 1200 mm | 1500 mm | 1200 mm | 1500 mm |
Type | AC | ||||
Power factor | 0,5 | ||||
Energy label | A+ | ||||
Degrees | 180 | ||||
Color category | Cool white | ||||
Color temperature | 4000 K | ||||
Operating hours | 15000 h | ||||
Diameter | 28 mm | ||||
IP | 20 |

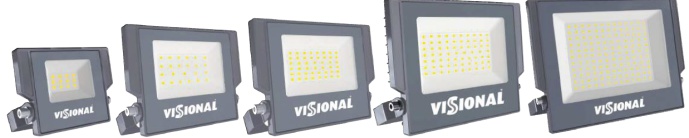

LED FLOOD LIGHTS
LED FLOOD LIGHTS is a perfect lighting solution for an industrial outdoor areas.
FLOOD LIGHTS provide good color rendering and instant start up for higher security.
High quality materials combined with a stylish and compact design made LED
FLOOD LIGHTS very popular on the market, due to their high intensity, high IP protection and high energy efficiency up to 80%.
Power | Beam angle | Lumen output | Voltage | Lifetime | Dimensions | CCT |
10W | 120° | 1000 Lm | AC 100-240V | 50000h | 130x110x50mm | 3000K-6000K |
20W | 120° | 2000 Lm | AC 100-240V | 50000h | 175x156x57 mm | 3000K-6000K |
30W | 120° | 3000 Lm | AC 100-240V | 50000h | 192x171x59 mm | 3000K-6000K |
50W | 120° | 6000 Lm | AC 100-240V | 50000h | 235x200x66 mm | 3000K-6000K |
80W | 120° | 8000 Lm | AC 100-240V | 50000h | 285x250x70 mm | 3000K-6000K |
100W | 120° | 10000 Lm | AC 100-240V | 50000h | 235x200x66 mm | 3000K-6000K |
150W | 120° | 15000 Lm | AC 100-240V | 50000h | 360x300x90 mm | 3000K-6000K |
200W | 120° | 20000 Lm | AC 100-240V | 50000h | 500x380x115 mm | 3000K-6000K |
300W | 120° | 30000 Lm | AC 100-240V | 50000h | 500x380x115 mm | 3000K-6000K |
400W | 120° | 40000 Lm | AC 100-240V | 50000h | 500x380x115 mm | 3000K-6000K |
LED TG20 FLOOD LIGHTING
The scope of application
For the projecting illumination in outdoor place such as
ship, dock port, store place and stadium
Products characteristic
- The shell is made of good stainless steel with high strength and good corrosion resistance;
- It adopts good LED illuminant the work life lighting and environment protection,
- lamp beads luminous flux in the 120 LM/W, long life, low power consumption, color index greater than 80 light angle of 120°
- LED drive adopt stable performance components to ensure long life of the drive circuit, constant current circuit design and there is a abort circuit and overload circuit protection to ensure LED long term and stable work;
Production authentication
- Approval by CCS (China Classification Society), Certificate Number ZJ 20 P 4028 7;
- By the American Bureau of Shipping “ Certification, Certificate Number 18 SQ 1799333 PDA;
- Conform to international IEC Nord and National standard GB 7000 7 2005;
- Conform to «GRADE ENTRY NORMS FOR STEEL SHIPS»;
International code | Type | Voltage | Power | Lamp holder | Illuminant | Luminous flux | Protection class | Cable class diameter | Weight |
791835 | TG20 | 90V~270V | 30W | LED | 130x110x50mm | 3000 | IP67 | 9-14 | 7.0kg |
791836 | 50W | 5000 | 10.6kg | ||||||
791834 | 100W | 10000 | 16.7kg |
